Hydraulic Pressure Calculator

Pascal's law says that if you apply external pressure on the liquid of gas in the enclosed container, the pressure will be transmitted throughout the fluid so that the same shift occurs everywhere. This law was named after Blaise Pascal who, in 1646, performed an experiment called Pascal's barrel. He inserted a long vertical tube into a barrel filled with water. Then he poured the water into this tube, which increased the hydrostatic pressure. At some point, the pressure inside the barrel was too high, and the barrel burst.

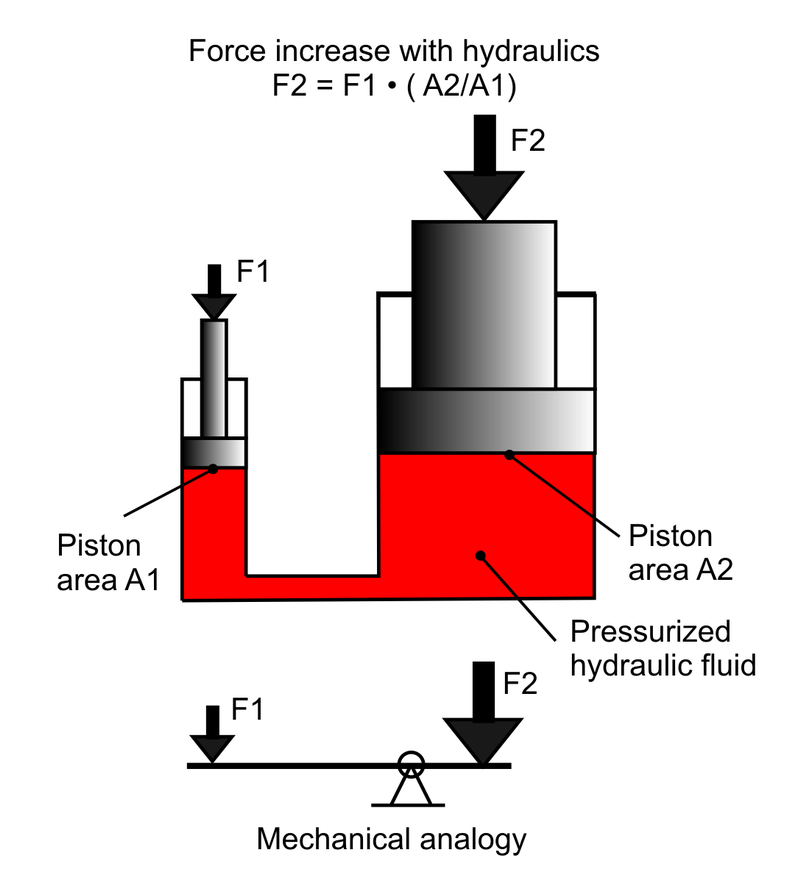

Pascal's principle is used in many hydraulic systems, such as hydraulic press, which is shown in the figure below. There are two pistons: one with a smaller area and one with a bigger area, that are connected with each other via some hydraulic fluid. The pressure that the smaller piston exerts against the liquid will be precisely equal to the pressure the liquid exerts against the bigger cylinder. It is important to stress that not the forces, but pressures are equal.

Our hydraulic pressure calculator can compute suitable parameters of both pistons in the hydraulic press. To do this, we have used Pascal's law formula, which after appropriate transformations, takes the form of:

where

• F1​F1​ — Force applied to the first piston;
• F2​F2​ — Force applied to the second piston;
• A1​A1​ — Area of the first piston; and
• A2​A2​ — Area of the second piston.

The pressure of the liquid inside the hydraulic press can be calculated in two simple ways: p=F1​/A1​p=F1​/A1​ or p=F2​/A2​p=F2​/A2​. Although this is not obvious at first, the principle of energy conservation is fulfilled in the hydraulic press. To lift a heavier object lying on the first piston, we need to move the second piston at a longer distance. We can express it with these equations:

where:

• d1​d1​ — Distance at which the first piston has moved; and
• d2​d2​ — Distance at which the second piston has moved.

The total work done by one piston satisfies the relation:

In the Lifting distances and work section of our hydraulic pressure calculator, you can also estimate parameters: d1​d1​, d2​d2​, and WW.

Let's use our hydraulic press calculator to analyze an automobile hydraulic lift. How much force do we need to apply to lift a car with a mass of 1000 kg? Let's go step by step:

1. Pressure is usually exerted on the fluid in the small piston by a compressor. If you assume that the small piston is a circle with a diameter of 3 cm, then you can easily compute that its area equals A1​=7.069 cm2A1​=7.069 cm2.

2. Similarly, if the bigger piston, which lifts the car, is a circle 30 cm in diameter, then its area equals A2​=706.9 cm2A2​=706.9 cm2.

3. The weight of car with mass of 1000 kg is F2​=1000 kg×9.80665 m/s2F2​=1000 kg×9.80665 m/s2 =98066.5 N=98066.5 N, because Earth's acceleration is g=9.80665 m/s2g=9.80665 m/s2.

4. Finally, with our Pascal's law calculator, we can calculate that to lift a car with a mass of 1000 kg, we need only F1​=980.7 NF1​=980.7 N, which corresponds to the mass of 100 kg, approximately a mass of human body! At the same time, the liquid pressure is p=1387.3 kPap=1387.3 kPa, which is 13.69 times higher than the atmospheric pressure. Check out the pressure conversion calculator to learn how you can switch between different pressure units.
